工具版本兼容问题
结合边框 内边距 外边距的学习 理解边框模型


示例 1 :

边框模型

真正决定一个元素的表现形式,是由其边框模型决定的

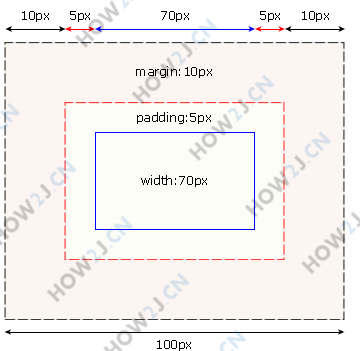

由图所示
蓝色框即为内容
width:70px 表示内容的大小
红色框即为边框
内容到边框之间的距离,即为内边距 5px
灰色框,是指边框与其他元素之间的距离,即为外边距:10px

.box{
width:70px;
padding:5px;
margin: 10px;
}
"); window.frames["iframe_show483"].document.write(decodeHtml($("textarea#stepcodeTextarea483").val())); window.frames["iframe_show483"].document.close(); $(window.frames["iframe_show483"]).load(function(){ $("#iframe_show483").height($("#iframe_show483").contents().find("body").height()+showittryitheight); }); $("#iframe_show483").height($("#iframe_show483").contents().find("body").height()+showittryitheight); setTimeout(function(){ },500); });
运行效果
边框模型
<style> .box{ width:70px; padding:5px; margin: 10px; } div{ border:1px solid gray; font-size:70%; } </style> <div> 其他元素 </div> <div class="box"> 内容宽度70px <br><br> 内边距:5px <br> <br> 外边距:10px <br> </div> <div> 其他元素 </div>
"); window.frames["iframe483"].document.write(decodeHtml(code483)); window.frames["iframe483"].document.close(); //load和下面的非load必需并存,因为如果代码用到了jquery就必须使用load的方式 $(window.frames["iframe483"]).load(function(){ $("#iframe483").height($("#iframe483").contents().find("body").height()+showittryitheight); }); $("#iframe483").height($("#iframe483").contents().find("body").height()+showittryitheight); alreadyWriteCode483 = code483; $("#rendering483").hide(); $("#rendered483").show(); } var tRereshRetry2DemoPanel483 = setInterval(rereshRetry2DemoPanel483,1000); var binded483 = false; $("textarea#stepcodeTextarea483").keyup(function(){ if(!binded483){ $(window).bind('beforeunload',function(){ binded483 = true; return "xxxx"; }); } var newCode = $(this).val() code483 = newCode; /*below code is replaced by function rereshRetry2DemoPanel()*/ // if(code483!=newCode){ // window.frames["iframe483"].document.write("
"); // window.frames["iframe483"].document.write(decodeHtml($("textarea#stepcodeTextarea483").val())); // window.frames["iframe483"].document.close(); // $(window.frames["iframe483"]).load(function(){ // $("#iframe483").height($("#iframe483").contents().find("body").height()+showittryitheight); // }); // code483 = newCode; // } }); $(".tryButton483").click(function(){ $("#tryDiv483").show(); $("#stepcodeTextarea483").focus(); $("#stepcodeTextarea483").height(200); $("#iframe483").height(0); window.frames["iframe483"].document.write("
"); window.frames["iframe483"].document.write(decodeHtml($("textarea#stepcodeTextarea483").val())); window.frames["iframe483"].document.close(); //load和下面的非load必需并存,因为如果代码用到了jquery就必须使用load的方式 $(window.frames["iframe483"]).load(function(){ $("#iframe483").height($("#iframe483").contents().find("body").height()+showittryitheight); }); $("#iframe483").height($("#iframe483").contents().find("body").height()+showittryitheight); this.scrollIntoView(true); editor483.focus(); editor483.setSize(null, "250"); $("#rendering483").hide(); $("#rendered483").hide(); }); var mixedMode = { name: "htmlmixed", scriptTypes: [{matches: /\/x-handlebars-template|\/x-mustache/i, mode: null}, {matches: /(text|application)\/(x-)?vb(a|script)/i, mode: "vbscript"}] }; var editor483 = CodeMirror.fromTextArea(document.getElementById("stepcodeTextarea483"), { lineNumbers: true, styleActiveLine: true, matchBrackets: true, mode:"text/html", theme:"eclipse", selectionPointer: true, lineWrapping: true, extraKeys: { "Alt-/": "autocomplete", "Ctrl-F": "findPersistent", "F8": function(cm) { cm.setOption("fullScreen", !cm.getOption("fullScreen")); }, "Esc": function(cm) { if (cm.getOption("fullScreen")) cm.setOption("fullScreen", false); } } }); editor483.on("change",function(doc){ if(!binded483){ $(window).bind('beforeunload',function(){ binded483 = true; return "xxxx"; }); } var newCode = doc.getValue(); code483 = newCode; $("textarea#stepcodeTextarea483").val(newCode); if(alreadyWriteCode483!=code483){ lastModifedTime483 = new Date().getTime(); $("#rendering483").show(); $("#rendered483").hide(); } // alert(doc.getValue()); }); $(".CodeMirror").addClass("form-control"); // var editor483 = CodeMirror.fromTextArea(, { // lineNumbers: true, // styleActiveLine: true, // matchBrackets: true, // theme:"eclipse", // }); editor483.on("change",function(doc){ // alert(doc.getValue()); }); $("#tryDiv483").hide(); }); $("div.codemirrorTips span").addClass("glyphicon glyphicon-asterisk");


源代码
1. 双击选中单词 2. 三击选中整行 3. CTRL+F 查找 4. F8 全屏编辑,再次点击恢复
渲染中 渲染完成
效果
