步骤 1 : 页面效果 步骤 2 : MVC 设计思想 步骤 3 : list()方法 步骤 4 : 服务端跳转 步骤 5 : listCategory.jsp

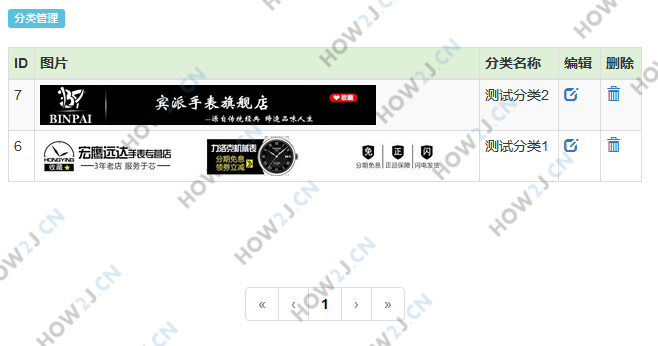

首先访问
http://127.0.0.1:8080/tmall/admin_category_list 观看页面效果

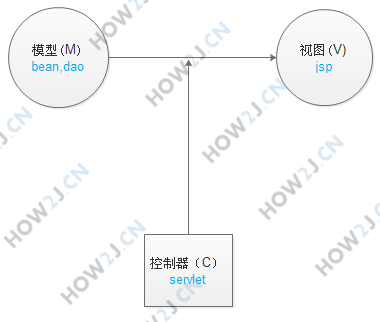

根据 MVC设计模式的思想,做J2EE web应用,从MVC的角度来看,就是把不同的数据显示在不同的页面上。
数据就是 模型 ( bean, dao ) 页面就是 视图 ( jsp ) 控制不同的模型显示在不同的视图上,这件事,就是由控制器来完成 ( servlet ) 所以分类管理,从MVC的角度来看,就是把多条分类Category数据放在一个集合里, 让listCategory.jsp 这个视图去显示出来。
最后就是视图listCategory.jsp了。
在JSP包含关系中已经讲解过了listCategory.jsp中包含的jsp文件,这里就不做赘述。 本步骤就关注在listCategory.jsp主体内容是如何工作的。 作为视图,担当的角色是显示数据。所以关键就是从第44行开始,借助JSTL的c:forEach标签遍历从CategoryServlet的list() 的request.setAttribute("thecs", cs); 传递过来的集合。 <c:forEach items="${thecs}" var="c"> <%@ page language="java" contentType="text/html; charset=UTF-8"
pageEncoding="UTF-8" import="java.util.*"%>
<%@ taglib uri="http://java.sun.com/jsp/jstl/core" prefix="c"%>
<%@include file="../include/admin/adminHeader.jsp"%>
<%@include file="../include/admin/adminNavigator.jsp"%>
<script>
$(function(){
$("#addForm").submit(function(){
if(!checkEmpty("name","分类名称"))
return false;
if(!checkEmpty("categoryPic","分类图片"))
return false;
return true;
});
});
</script>
<title>分类管理</title>
<div class="workingArea">
<h1 class="label label-info" >分类管理</h1>
<br>
<br>
<div class="listDataTableDiv">
<table class="table table-striped table-bordered table-hover table-condensed">
<thead>
<tr class="success">
<th>ID</th>
<th>图片</th>
<th>分类名称</th>
<!-- <th>属性管理</th> -->
<!-- <th>产品管理</th> -->
<th>编辑</th>
<th>删除</th>
</tr>
</thead>
<tbody>
<c:forEach items="${thecs}" var="c">
<tr>
<td>${c.id}</td>
<td><img height="40px" src="img/category/${c.id}.jpg"></td>
<td>${c.name}</td>
<%-- <td><a href="admin_property_list?cid=${c.id}"><span class="glyphicon glyphicon-th-list"></span></a></td> --%>
<%-- <td><a href="admin_product_list?cid=${c.id}"><span class="glyphicon glyphicon-shopping-cart"></span></a></td> --%>
<td><a href="admin_category_edit?id=${c.id}"><span class="glyphicon glyphicon-edit"></span></a></td>
<td><a deleteLink="true" href="admin_category_delete?id=${c.id}"><span class=" glyphicon glyphicon-trash"></span></a></td>
</tr>
</c:forEach>
</tbody>
</table>
</div>
<div class="pageDiv">
<%@include file="../include/admin/adminPage.jsp" %>
</div>
<div class="panel panel-warning addDiv">
<div class="panel-heading">新增分类</div>
<div class="panel-body">
<form method="post" id="addForm" action="admin_category_add" enctype="multipart/form-data">
<table class="addTable">
<tr>
<td>分类名称</td>
<td><input id="name" name="name" type="text" class="form-control"></td>
</tr>
<tr>
<td>分类圖片</td>
<td>
<input id="categoryPic" accept="image/*" type="file" name="filepath" />
</td>
</tr>
<tr class="submitTR">
<td colspan="2" align="center">
<button type="submit" class="btn btn-success">提 交</button>
</td>
</tr>
</table>
</form>
</div>
</div>
</div>
<%@include file="../include/admin/adminFooter.jsp"%>
